Inline Water Level Control Structures™

Price: Call For Pricing

Call to Order: (800) 232-4742

Inline Water Level Control StructuresTM effectively manage the water table in a variety of applications.

See "Pricing" tab below. Table reflects List pricing.

  • Available in Manual or Automatic. (Call for details on Automatic.)
  • Constructed of rugged 1/2" PVC with lockable plastic lid.
  • Stainless steel screws and custom anodized aluminum corner extrusions used for strength and durability*.
  • Flexible couplers allows PVC, plastic pipe, or other materials to be easily attached.  (Please specify type of pipe when ordering.)
  • Stoplogs made of PVC in 5" and 7" heights for adjustability.  (Maintenance recommended: Remove stoplogs and grease seal with Lubriplate Grease [included]. Ensure there is no debris in the tracks or along the bottom of the structure. Replace stoplogs after greasing, ensuring bottom stoplog is installed first.)
  • Important! To minimize seepage, align stoplogs firmly against one side of the stoplog track.
  • Stoplogs must remain in track during structure installation.
  • Structures are not pressure rated.
  • Structures are intended for gravity flow: Low pressure and some seepage may occur.
  • 5-year warranty on all standard structures.
  • Customized or special orders will carry a 1-year warranty on workmanship and material and are nonreturnable.
     *For water that is caustic, acid, corrosive, salt, or pH below 5 pH or above 9 pH, please notify us of your requirements to ensure structures are built with compatible hardware. For these applications, Agri Drain recommends stainless steel.
  • Installation Instructions
  • Inline Water Level Control StructureTM Spec Sheet
  • Water Level Control Structures Spec Sheet
  • Using Inline Water Level Control Devices for Improved Drainage Water Management Courtesy of USDA/ARS.

       Automatic Structures

       US Patent No. 6,715,508 B2
       US Patent No. 6,786,234 B2

Canadian Patent No. 2,403,456

Canadian Patent No. 2,466,976

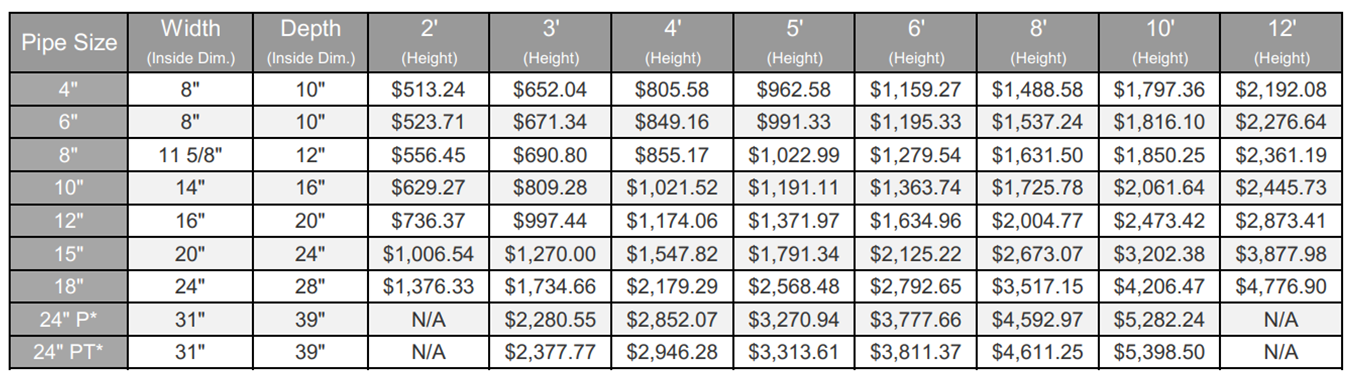

Inline Water Level Control StructureTM

Table Reflects List Pricing

Larger CMP structures also available. Call for details on custom size and pricing.

Pipe Size Width
(Inside Dim.)
Depth
(Inside Dim.)
2'
(Height)
3'
(Height)
4'
(Height)
5'
(Height)
6'
(Height)
8'
(Height)
10'
(Height)
12'
(Height)
4" 8" 10" $428.05 $482.65 $537.25 $590.76 $665.84 $815.44 $933.54 $1,092.48
6" 8" 10" $436.79 $491.39 $544.90 $600.59 $673.72 $824.89 $1,025.30 $1,101.79
8" 11 5/8" 12" $464.09 $537.25 $609.32 $716.02 $778.32 $974.87 $1,259.81 $1,333.08
10" 14" 16" $510.96 $602.81 $695.80 $826.44 $905.90 $1,150.48 $1,350.39 $1,550.29
12" 16" 20" $614.15 $721.88 $828.48 $982.42 $1,094.34 $1,472.04 $1,644.43 $1,952.12
15" 20" 24" $786.92 $867.79 $1,052.03 $1,210.24 $1,368.46 $1,683.64 $2,019.68 $2,314.02
18" 24" 28" $997.12 $1,190.12 $1,381.87 $1,587.22 $1,765.36 $2,150.10 $2,533.58 $2,918.33
24" P* 31" 39" N/A $1,615.27 $1,770.87 $2,029.46 $2,286.81 $2,795.28 $3,319.94 N/A
24" PT* 31" 39" N/A $1,720.48 $2,030.70 $2,289.30 $2,547.90 $3,063.84 $3,581.04 N/A

Prices shown for 4"-18" pipe size include connection to PVC, CMP, or corrugated plastic tubing.

*On 24" pipe size: P signifies connection to PVC, CMP, etc.  PT signifies connection to corrugated plastic tubing.
