2 & 3 Level Automated Valve

  • 2 and 3 level automated

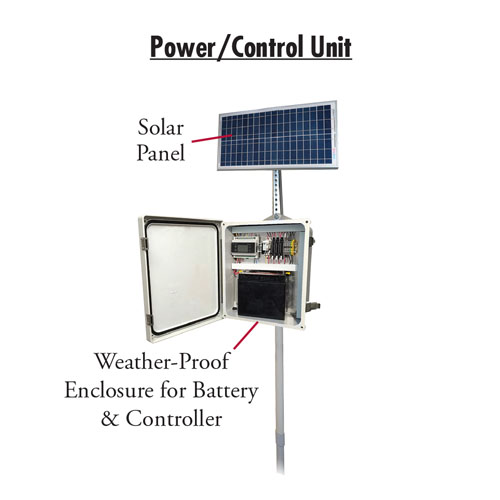

  • Power-Control Unit
  • Automated Installation

Price: Call For Pricing

Call to Order: (800) 232-4742

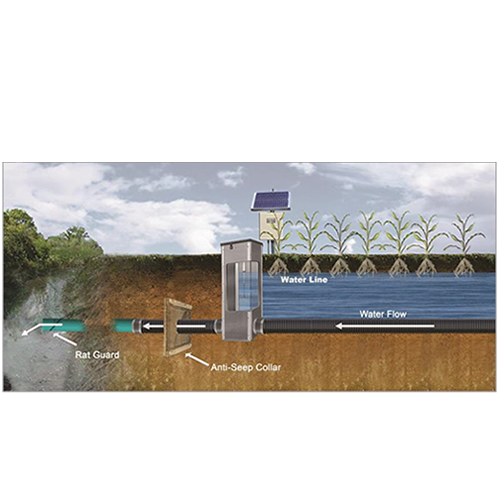

Installing 1 or 2 Slide Gate Valve(s) with a power actuator and a locally-programmable controller into Agri Drain's Inline Water Level Control Structure™ allows you to program your system on-site to automatically open and close valves to drain or retain water in a pond, wetland, surface or subsurface drainage system, or mine-reclamation application on a year-round schedule. Slide Gate Valve(s), stoplogs, and power actuator slide down inside the stoplog tracks of our Inline Water Level Control Structure.

Features:

  • Choice of one or two PVC Slide Gate Valve(s).

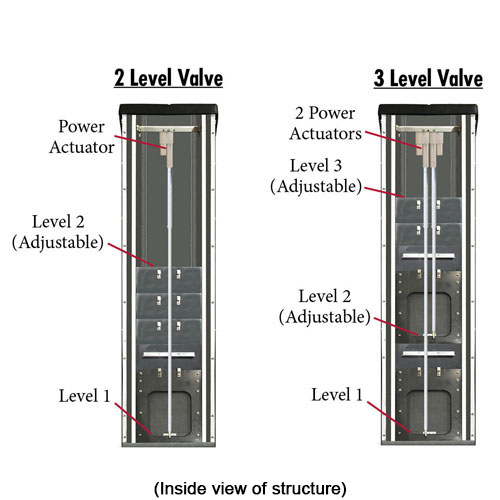

  • Choice of one or two power actuator(s) to open and close the Slide Gate Valve(s) in either a 2 level or 3 level structure.
  • Solar panel and battery to provide power to the system.
  • Locally-programmable controller.
  • Weather-proof enclosure.

Specs:

  • Same specs as the Inline structure.
  • Available for pipe sizes up to 18"-diameter.
  • Components slide into tracks of an Inline structure. For Inline structures, click here.

2 & 3 Level Automated Valve Flyer
